oil pressure switch cable routing

1564 Views 5 Replies 3 Participants Last post by  Shep,
thelastbaron
I put mine back out of the way of the fan, and over the hanger, round the head but it's a bit stretched. have had a look at some old photos of the bike and it looks like it goes behind the fan/cowl and up directly. anyone got a pic or good explanation on how it's meant to be routed ?



thanks
Reply
Save
Like
1 - 1 of 6 Posts
Cobram
the last baron said:
Thanks Shep,

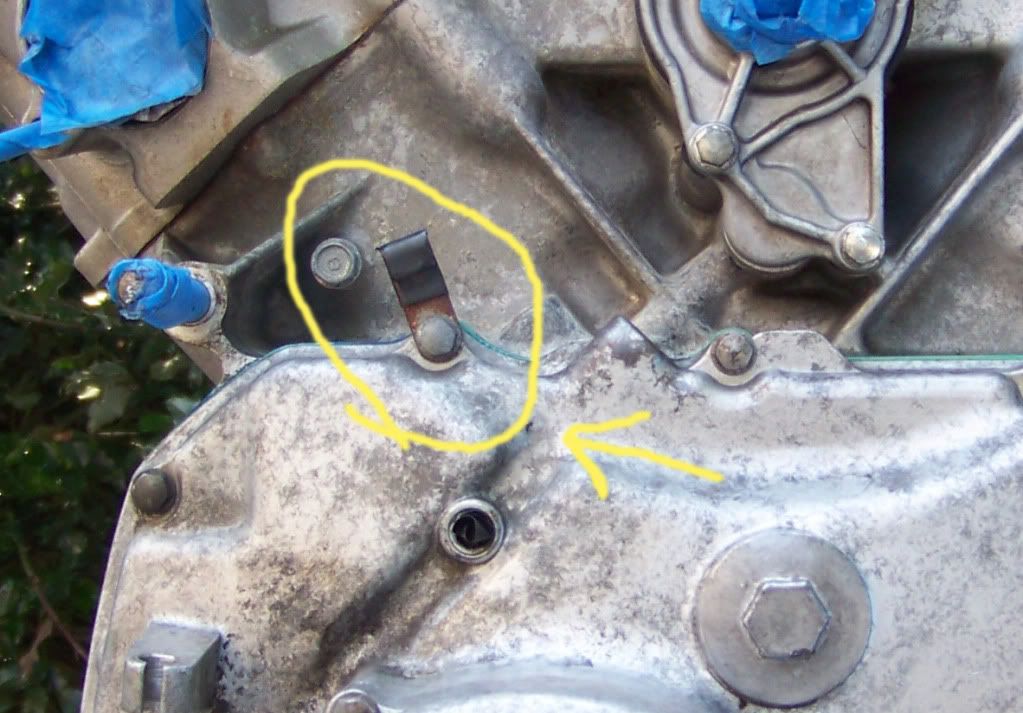

I just found that little clamp (no 6) wondering how to get it to stay behind the fan now... will have a play. off to the cx-gl mcc wiltshire rally in an hour or so.
Click to expand...

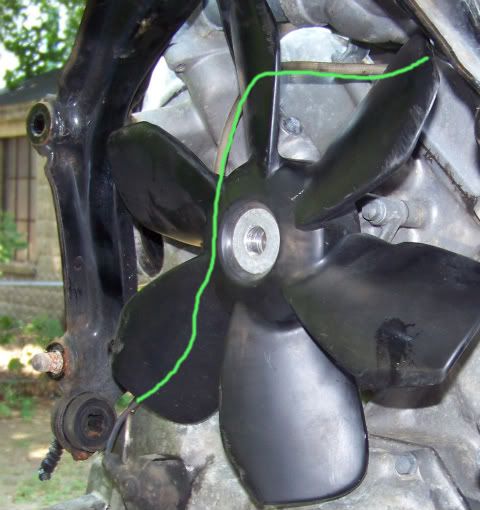

The clamp is what holds it out of the way of the fan, then it routes to the left of the air diverter on top.
