Help with re-attaching Faring

1801 Views 10 Replies 4 Participants Last post by  bandit
I need some help re-attaching the Faring on my 79 CX500C. Does anyone have instructions or pictures on how to attach the Faring. I made the mistake on not taking pictures when I removed it a couple of years ago. Any help would be great! Thanks.
1 - 4 of 11 Posts
Is that like the fairing on the GL? Mine sits on a bracket, has 4 bolts (2 on each side) and plugs in. Looked more intimidating and complicated than it really was once I got into it.

I could be completely off, but trying to help anyway
Mine is fork mounted and stays stationary.... I know there is a pic of my bike with fairing in the "Illinois" thread- I put it there last night.... let me see if I can find the link to the picture blog I started when I got the bike
OMG.... I'm an idiot!!! Forgot I don't have the pics on this computer, but it's saved in my PB

..... epic fail... site is blocked here....

EDIT.... I was wrong again, uploading what I have now

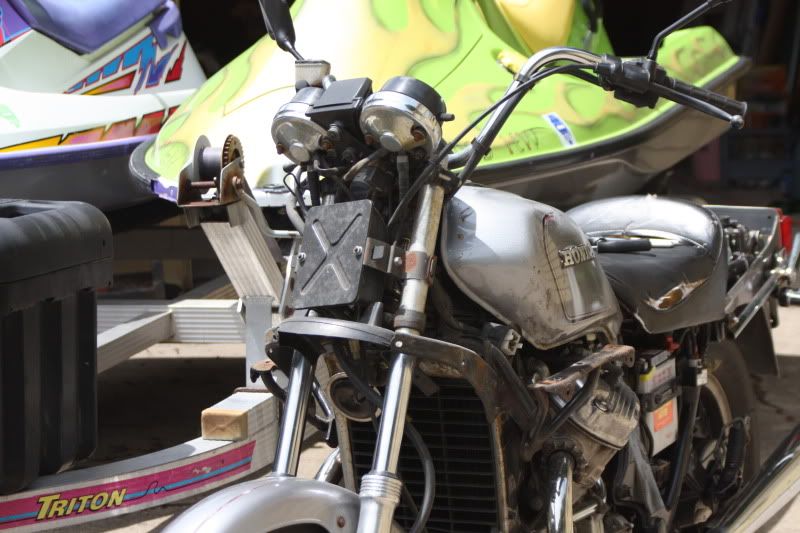

Here is the front of the bike- you can see the bracket/ framework that the fairing sits on top of

This is the underside of the fairing- well, one of the 2 sides with bolts. The bolts go through the holes on the framework, it bolts down on those 4, and ten also there's 4 smaller ones in the front... you can kinda see those smaller bolt holes in this picture (bottom of the fairing)

Does this help at all?
